Description

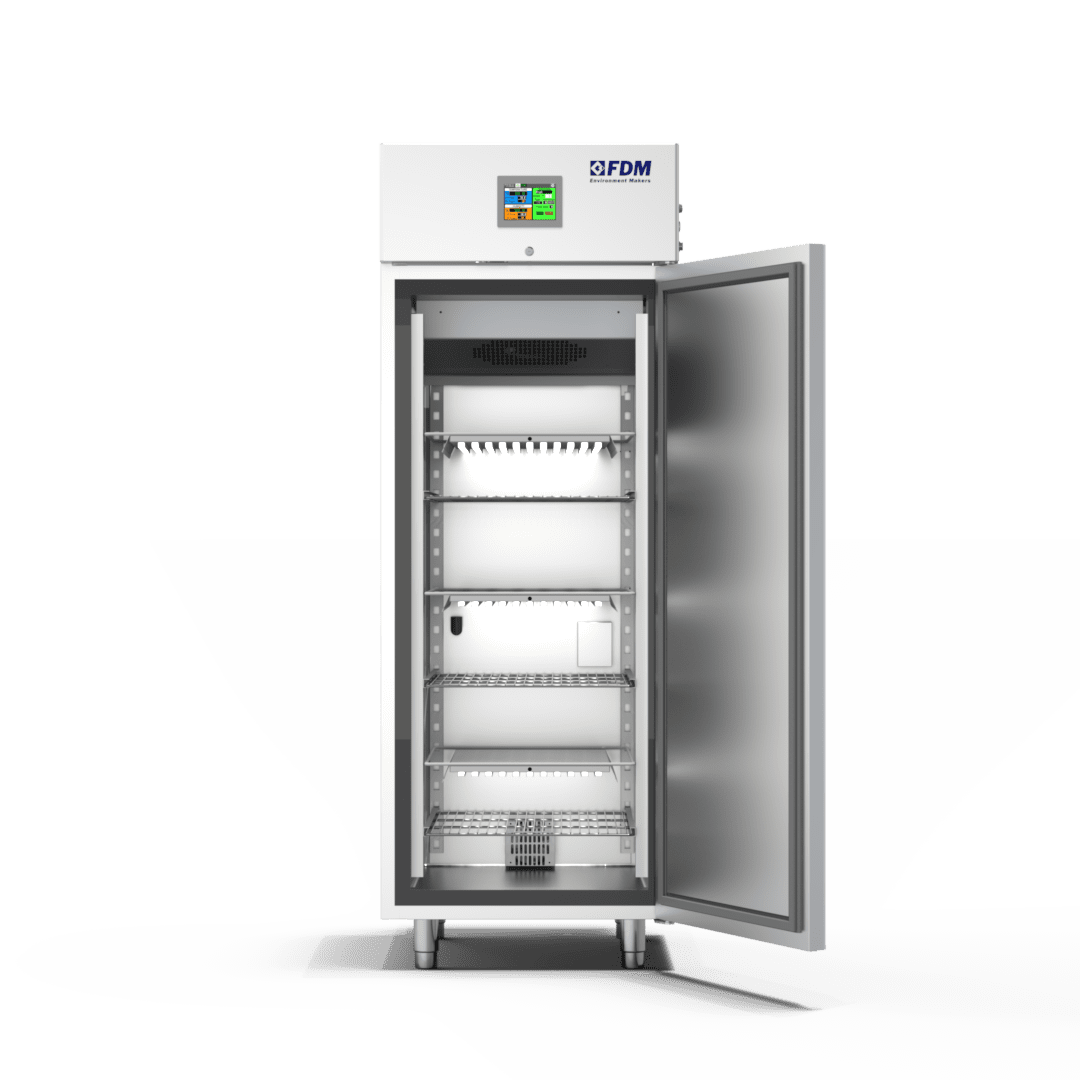

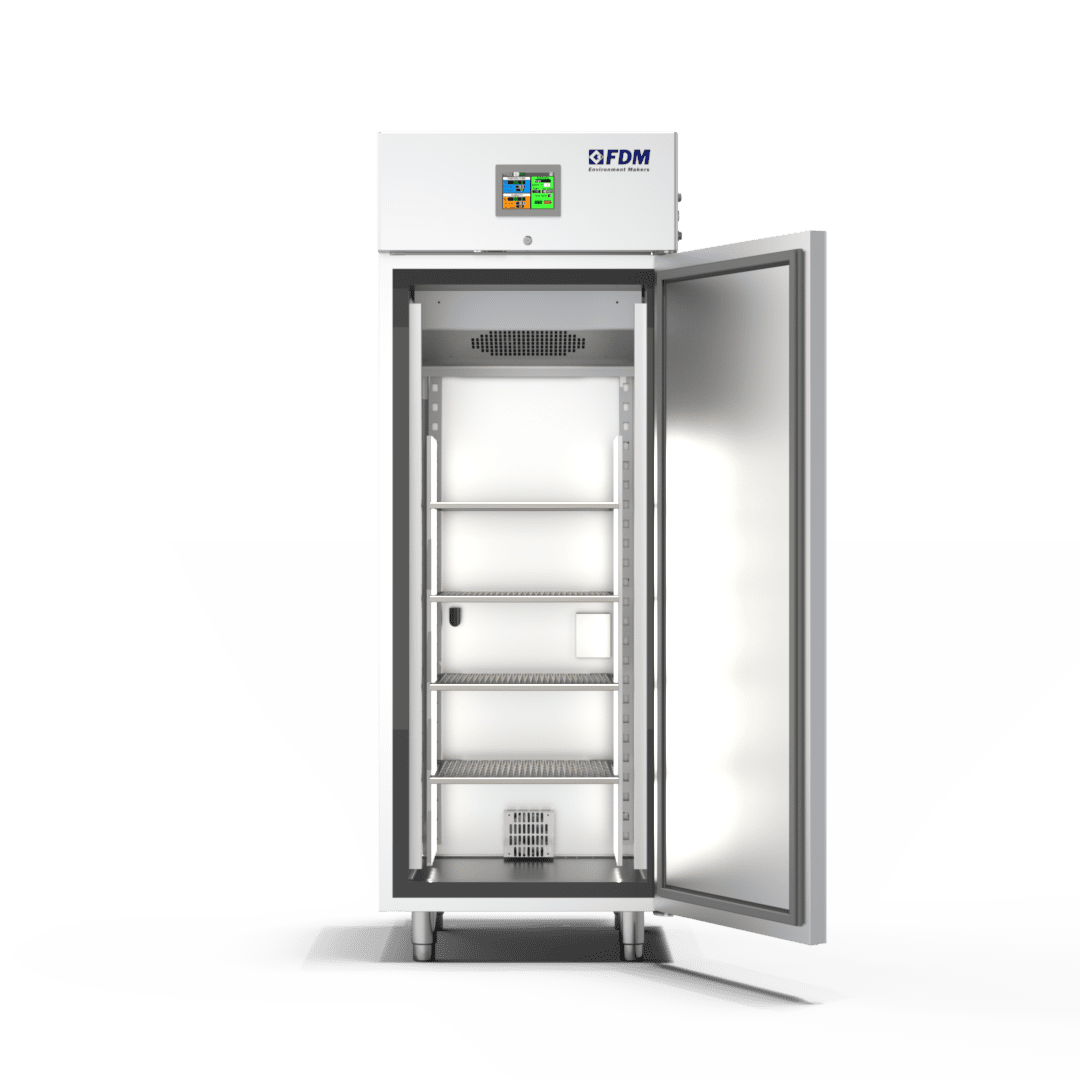

A growth chamber is a climatic chamber specifically designed for plants, seeds and small living organisms such as insects and bacteria.

Unlike standard climatic chambers, it allows to control, in addition to temperature and humidity, also lighting.

Documents and Configurator

Get A Quote

Get Growth Chamber Price list

Get a Quote

Get the FDM price list for Growth Chambers

Online Configurator

Build a new Growth Chamber

Datasheet

Download the complete documentation

For any question or support request, please contact us.

For any questions or support request, please contact us.

LCB-LCS Series: Technical Details

Environmental Conditions

Temperature

from -25°C up to +70°C

Humidity

Luce ON = da 10% fino a 80%
Luce OFF = da 10% fino a 98%

Illumination

Dimmable illumination with optional lamps

Configuration

Volumes

from 25 up to 2300 liters

Vertical Lighting

Fluorescent or led lamps installed on internal shelves?

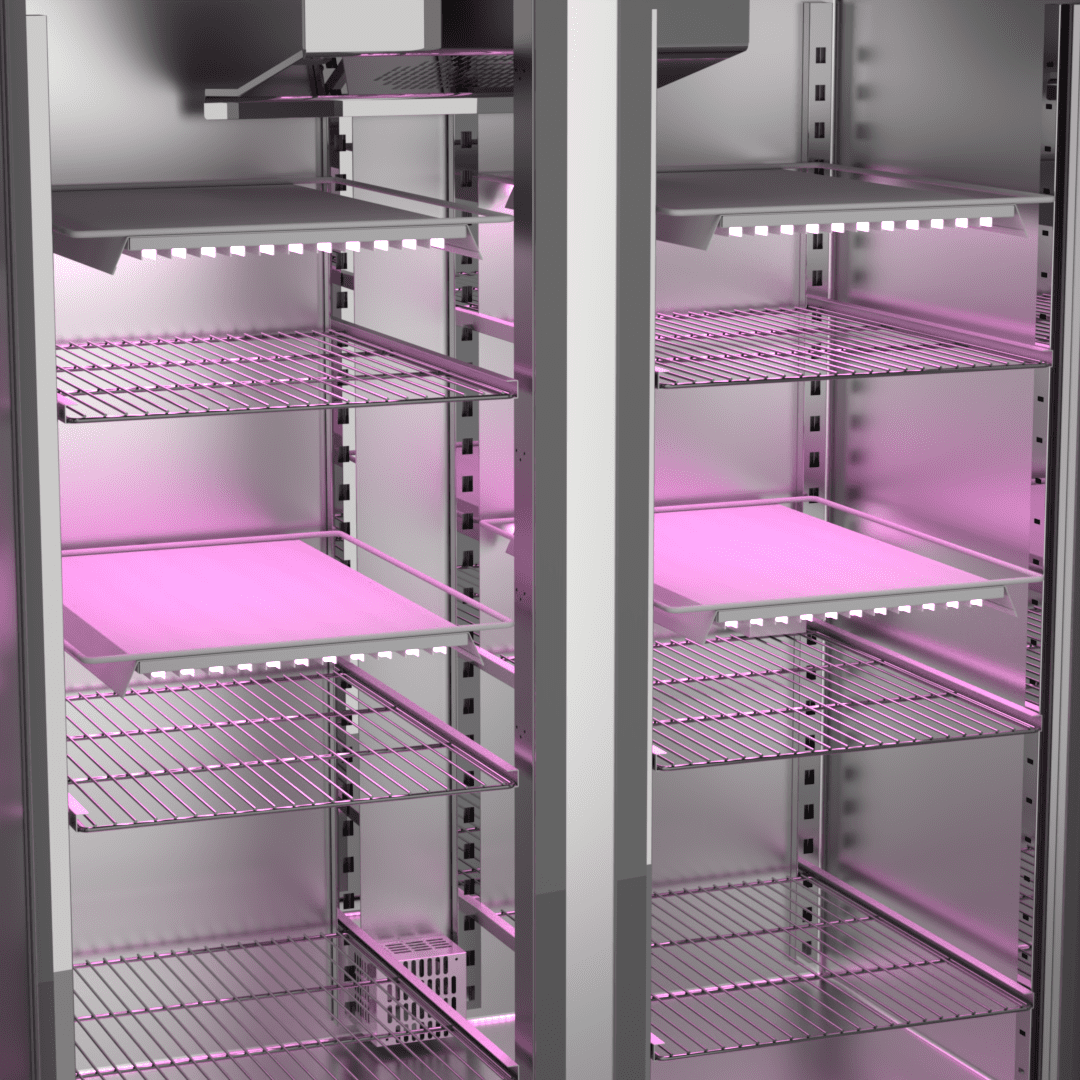

Side Lighting

Fluorescent or led lamps installed on side walls?

stillFACE

Stability test performing controller

revoFACE

Dynamic performing programmer

Ventilation

Forced ventilation fan

Daylamp

Sunlight Simulation

Fluolamp

Accelerated Plant Growing

Biolamp

Insect and Bacteria Incubation

Arablamp

Arabidopsis Accelerated Growing

ICHlamp

Photostability Test

Alarms

High/Low temperature and humidity

Electric Power

220-240V ~ /50 Hz
different power available

Insights

How does a Growth Chamber work

Light and temperature control has always been associated with growth.

Among the various reasons why a growth chamber is a primary tool for scientific research, there is certainly reproducibility. This means being able to perform an experiment, in order to confirm or deny its outcome.

This possibility is allowed by the uniformity of the parameters during the test and by the absence of unforeseen circumstances that would be common in a real environmental situation.

In fact, a plant growth chamber or an insect growth chamber reproduces natural conditions without unpredictability, with lighting, temperature and homogeneous humidity, according to different test requirements.

Examples of use

Its features make the growth chamber an essential tool for agricultural and chemical research, and generally for scientific purposes.

A plant growth chamber is in fact used for plant diseases research, thus it contributes to the R&D of more resistant food crops and seeds.

An insect growth chamber incubator for insects recreates the natural habitat of an living organism, in order to study its behavior and characteristics.

FDM Growth Chambers

FDM has been a leading plant growth chamber manufacturer since 1949. FDM manufactures climatic growth chambers for photostability testing of all types, both standard and customized, for the laboratories of companies, universities and institutes. These growth chambers create a controlled environment for your testing needs.

Based on the type of light intensity, hence on the specific area of application, there are four different types of FDM growth chambers from the LCB-LCS series:

  • Daylamp - which reproduces full spectrum sunlight;
  • Biolamp - selected spectrum, specific for insect growth;
  • Fluolamp - towards the yellow area of ​​the spectrum, specific for plants;
  • Arablamp- for Arabidopsis, a particular type of plant.

The different models from the LFC series differ from one another for different sizes and capacities, according to different quantities of Photon Photosynthetic Flux (PPF) density.

The FDM growth chambers lighting is enabled thanks to fluorescent lamps that optimize the photobiological processes of plants and organisms, by emphasizing the lamps in the blue and red range.

The FDM lamps can be Neon, Led or UV rays lamps: these latter are very common in the requirements of laboratories and research institutes.

All models are ICH Compliant and follow the required directives. In particular, the Photostability testing of new active substances and medicines, also known as Q1B ICH guidelines.

Find your resting chamber, by comparing specifications in the technical data file or configure it online with your own requirements.

Read more
